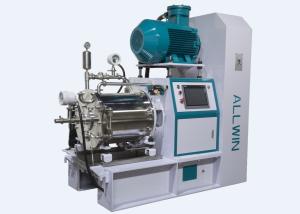

Pin Type Agitator Bead Mill 50L 45kW Solvent Production Machine better fineness
The Wet grinding Sand mill have different model and litres for meeting different demands and different industry, widely used in in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing,non-metallic minerals. The mills have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange. The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency. All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.
The advantages of Sand mill and Bead mill
L 1. Long history and plentiful experiences with 28 years, The founder of ALLWIN,Mr. Yongqi WANG , he was the first Chinese designer of sand/bead mill in 1967;
2. Master the core technology of dispersing and grinding;
3. High efficiency and low energy consumption;
4. Stable, high efficiency and low maintenance.
5.With ISO9001 certification and more than 11 patents of sand mill/bead mill.
The detailed information:
| No | main parameters | SH30 | Note |
| 1 | Explosion-proof motor kW | 45 kW ( Ex-proof) | |
| 2 | Effective volume of grinding chamber (L) | 30 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions: L*W*H (mm) | 2000*900*2000 | |
| 6 | Weight (kg) | 2300 | |
2.2 Detailed Configuration information:
| No | Main parts | SH 30 Ex--proof | Notes |
| 1 | External vessel | 304 stainless steel | |
| 2 | Inner grinding chamber | Silicon Carbide ceramic (SiC) | |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | |
| 4 | Dispersing system (Rotator+pin) | 304 stainless steel rotator Wearable stainless steel pin | |
| 5 | Feeding and discharging end covers on the chamber | 304 stainless steel | |
| 6 | Static discharge screen ring | 304 stainless steel Wire Wound screen ring with Gaps: 0.5mm. | |
| 7 | Mechanical seal | Intelligent double mechanical seal with mandatory lubricating-cooling system | |
| 8 | Feeding pump | 1” ARO diaphragm pump; | |
| 9 | Appliance configuration | Explosion-proof machine, suitable for water base materials, motor 45kW. Explosion-proof parts: operation column, electrical appliance boxes; electric contact pressure gauge, temperature, solenoid valves with Ex electrical contacts. Control system ( Touch Screen with Ex proof) | |
| 10 | Fasteners and connecting parts | Stainless steel clamp-type connecting parts | Quick and convenient |
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispesing well. Also the zirconia beads (grinding beads with different size for meeting different finally fineness.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
