37KW Wet Milling Equipment 60L Ex Proof Wet Bead Milling

Allwin Machine & Equipment Co.,Ltd
Contact Now

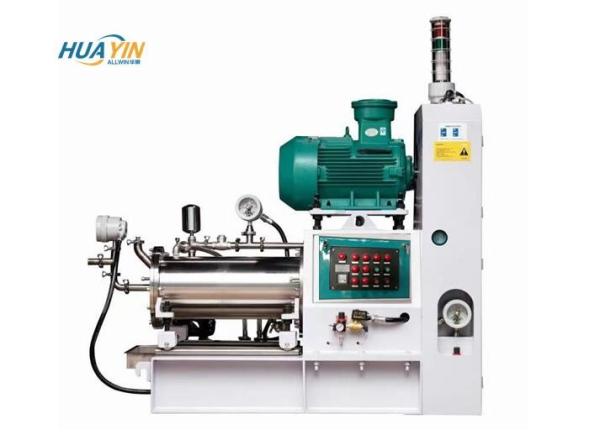

37KW Wet Milling Equipment 60L Ex Proof Wet Bead Milling

  • 1
  • 2

Brand Name : AllWin

Model Number : SP50

Certification : ISO9001

Place of Origin : China

MOQ : 1-5sets

Price : USD4000--USD19800/set

Payment Terms : T/T, MoneyGram, Western Union

Supply Ability : 30sets /month

Delivery Time : 20-30 Working Days

Packaging Details : Wooden boxes

Power : 37 kW

Voltage : 380v and 220V

litre : 60 L

Inner chamber material : 304 stainless steel or you need

Explosion : Ex-proof

Production capacity : 300-800 kg/h

Color : White

Feed pump : 1" ARO diaphragm pump

Mechanical Seal : Independently technology

Grinding beads : 1.2-1.4mm

Contact Now

Greater Capacity In Paint And Coating Micron 37 KW 60L Bead Mill Machine With SuS304 Stainless Steel Inner Chamber

The main introduction of Bead Mill Machine:

1. High independent technology: This Sand grinding mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with independent technology could resistant to more than 1600 kinds of solvents.

2. Better Cooling system:The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.

3. High Efficiency: The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.

4. Different materials chosed for inner chamber and dispersing discs: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

ved.

The Technical Data of Bead Mill Machine:

No main parameters SP50 Note
1 Non Explosion-proof motor kW 30kW (Non Ex)
2

Effective volume of

grinding chamber (L)

50
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 1940*900*2000
6 Weight (kg) 1500

The Configuration instructions:

1.Outer chamber materials: 304 stainless steel

2.Inner Chamber materials: 304 stainless steel or you need

3.Dispersing shaft: 40Cr with hard chromium plating

4.Dispersing disk: PU coated 304 stainless steel

5.Feeding and discharging end covers on the cylinder: 304 stainless steel

6.Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins

7.Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.

8.Mechanical seal: Intelligent double mechanical seal with indepent technology

9.Feeding pump: 1.5” ARO diaphragm pump;

10.Appliance configuration: Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type).

11.Fasteners and connecting parts: Stainless steel clamp-type connecting parts.

This series from 5L to 300L

"SUPER" SP series of Bead Mill
Type

Working Volume

(L)

Power

(kW)

Grinding Beads

(mm)

Throughput

(kg/h)

SP5 5 7.5 0.3-3.0 20-200
SP15 15 15 0.3-3.0 50-500
SP30 30 30 0.3-3.0 70-700
SP50 50 37 0.3-3.0 100-1000
SP100 100 55 0.3-3.0 300-3000
SP250 250 75 0.3-3.0 450-4500
SP300 300 90 0.3-3.0 550-5500

The Detailed Production show :
37KW Wet Milling Equipment 60L Ex Proof Wet Bead Milling
The company advantages:

Long history and plentiful experiences with 25 year

Master the core technology of dispersing and grinding

With imported four –axis Haas machining center

Have laboratory for grinding test and detection the fineness.

With ISO9001 certification and more than 11 patents of sand mill

Widely used in industries : Paint and Coating ,Pigment and dyestuffs, Printing inks, Gravure inks, Medicine and Cosmetics, food and food processing, Pesticide and Agrochemical industry, Hi-Tech nanometer products.

37KW Wet Milling Equipment 60L Ex Proof Wet Bead Milling

The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispesing well. Also the zirconia beads (grinding beads with different size for meeting different finally fineness.

If need more detailed information and price ,please contact us soon and warmly welcome to visit us!
