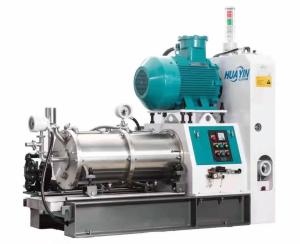

FS10 30 HZplus 30 50 Horizontal Bead Mill For Car Paints Higher 30% Production Capacity
FS series and HZplus series are our core technology Sand mill, could reach nano meter with higer production capacity, D50 300-500nm.
Widely applied in different industry, such as paper making, LFP and new materials, MLCC etc.
The advantages of FS and HZ Plus series horizontal bead mill
L 1. 30% energy saving and higher production capacity.
2. composite dispersion system with disk and pin
3. dynamic discharging with axis discharging
4. Stable, high efficiency and low maintenance.
5.Easy operation and Easy maintenance.
The detailed information:
| No | main parameters | HZ Plus 100 | Note |
| 1 | Explosion-proof motor kW | 55kW | |
| 2 | Effective volume of grinding chamber (L) | 100 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions: L*W*H (mm) | 21500*1200*2200 | |
| 6 | Weight (kg) | 2000---3000 | |
2.2 Detailed Configuration information:
| No | Main parts | HZ Plus100/250 | Notes |
| 1 | External vessel | 304 stainless steel | |
| 2 | Inner grinding chamber | Silicon Carbide ceramic (SiC), wearable steel, stainless steel | |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | |
| 4 | Dispersing system (Rotator+pin) | 304 stainless steel rotator Wearable stainless steel pin | |
| 5 | Feeding and discharging end covers on the chamber | 304 stainless steel | |
| 6 | dynamic discharge screen ring | 304 stainless steel Wire Wound screen ring with Gaps: 0.1-0.5mm. | |
| 7 | Mechanical seal | Intelligent double mechanical seal with mandatory lubricating-cooling system | |
| 8 | Feeding pump | 1.5/2” ARO diaphragm pump; | Ingersoll Rand |
| 9 | Appliance configuration | suitable for water base materials, motor (Explosion/ non ex-proof is optional) operation column, electrical appliance boxes; electric contact pressure gauge, temperature, solenoid valves with electrical contacts. Control system ( Touch Screen with Ex proof) | |
| 10 | Fasteners and connecting parts | Stainless steel clamp-type connecting parts | Quick and convenient |
The main processing in our workplant
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
